शटल के साथ उच्च अंत डबल कलर्स पीएलसी पैड प्रिंटिंग मशीन

This is a wide two color pad printing machine, 150*150 mm standard steel plate, the max. printing area is 127*127 mm. For pad printing process, this is standard size for big products. Printing two colors with one machine,  work efficiency is increased.

Ink-tray pad printer is widely used in industrial field. It could be used to printing on caps, ceramic bowl, plastic products and so on. It's easy to add the ink and additive.

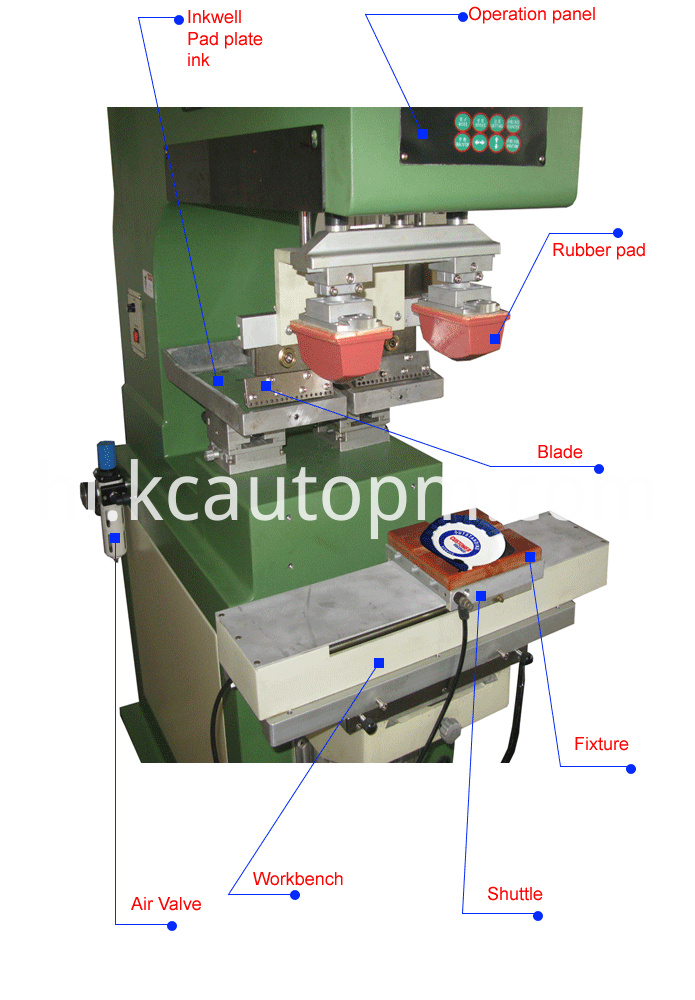

Two colors pad printer //Guide

• Shuttle workbench, printing a higher precision, a fixture a product printing;
• Suitable for large product double pad printing;
• Ink tray for ink store, and suitable for the traditional industry, printing ink adjust more convenient, more suitable for a striking observations;
• Coin aluminum Structure overall manufacturing, run more smoothly, life more abiding; .
• Automatically balanced scraping ink technology, scraping ink clean and easy to change;
• Shuttle stroke for 200 mm, can print most products, which are widely applied in electronics, metal, plastic, gifts, furniture, household appliances, toys, jewelry, and other industrial areas;
• Electromagnetic valve and cylinder with the German and Taiwan products

Two colors pad printer //Application fields

Two colors pad printer with shuttle//Parameter

• Max. plate size: 150×150 mm;
• Max. worktable area: 170×200mm;
• Max. printing speed: 850pcs/h;
• Printable color :2;
• Max printing area:130×130mm;
• Shuttle stroke: 200mm.
• Height adjustment of table: 200mm.

• Max. Plate size: 150 X 250 mm ;
• Max. Worktable area : 160 X 200 mm ;
• Max. Printing area : 130×220mm ;
• Max printing speed : 700pcs/h ;
• Printable color :2;
• Stroke of table shuttle: 200mm.

• Max. plate size : 150 X 300 mm ;
• Max. worktable area : 160 X 200 mm ;
• Max. printing area : 130×270mm ;
• Max printing speed : 700pcs/h ;
• Printable color :2;
• Stroke of table shuttle: 200mm

Two colors pad printer with shuttle//Advantage

• Microcomputer program controlling operating technique ;
• Streamline design ensure dexterous Appearance impressions;
• Coin aluminum structure frame coated Gross-Green color paint;
• Shuttle working table installed to get more precision overprint;
• Independency pressure adjustment of pad press-printing and picking up ink;
• Either testing or running mode to operate ;
• Opened inkwell to store and coating ink , easily adjust the character of pad ink.
• Automatism digital count function;
• Double colors pad printing with drying through blowing hot air:
• Ten grade printing speed setting, auto, semi-auto, testing operation mode setting;
• The function of blade only move front to back for mixing ink ;
• Automatics balance blade to remove the ink completely;
• Widen ink-tray installed to print more larger dimension.
