दो रंग स्याही-ट्रे पैड प्रिंटिंग मशीन

Ink well pad printing machine is widely used to decorate caps, ceramic bowl, plastic products, toys, mobile phone keys, golf and ball, pens, mice, electronic products, handicrafts. Ink well ink system, could see the ink clearly, convenient to add ink. Printing one color then another color, shuttle worktable help us get  chromatic precision.

Ink-tray pad printer is widely used in industrial field. It could be used to printing on caps, ceramic bowl, plastic products and so on. It's easy to add the ink and additive.

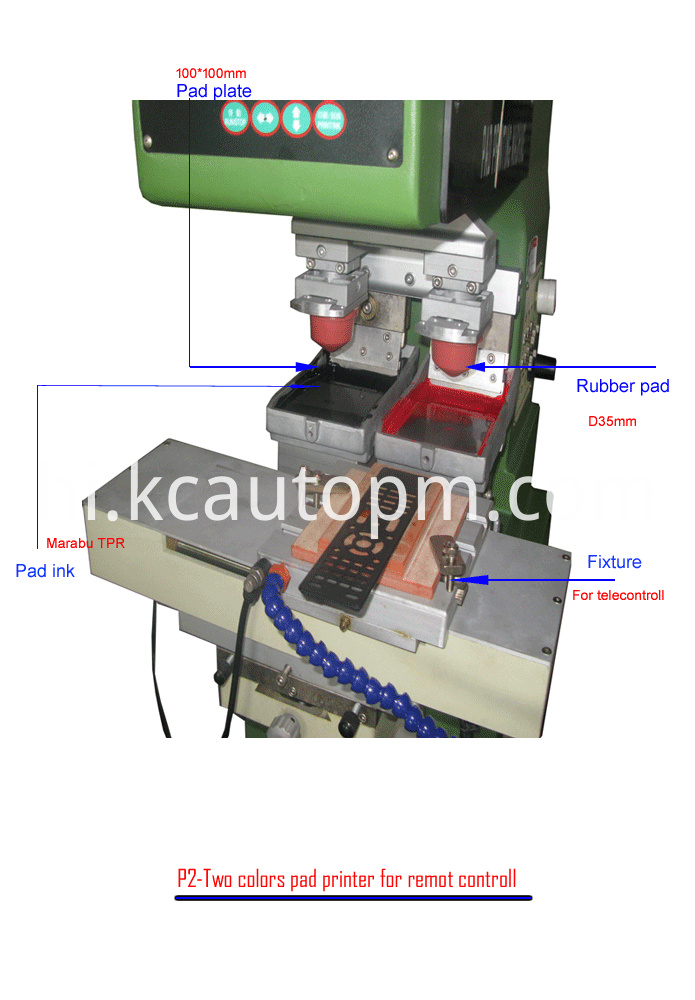

Two colors pad printer// Guide

• Shuttle workbench, printing more precision, a fixture a product printing;
• Suitable for small  product double pad printing;
• Ink tray for ink store, and suitable for the traditional industry, printing ink adjust more convenient, more suitable for a striking observations;
• Coin aluminum Structure overall manufacturing, run more smoothly, life more abiding; .
• Automatically balanced scraping ink technology, scraping ink clean and easy to change;
• Shuttle stroke for 125 mm, can print most products, which are widely applied in electronics, metal, plastic, gifts, furniture, household appliances, toys, jewelry, and other industrial areas;
• Electromagnetic valve and cylinder with the German and Taiwan products

Two colors pad printer// Application fields

Two colors pad printer with shuttle//Parameter

• Max. plate size: 100×100 mm;
• Max. worktable area: 125×200mm;
• Max. printing area: 85×85mm;
• Max. printing speed: 1000pcs/hr;
• Printable colour :2;
• Stroke of table shuttle: 125mm.

• Max. plate size: 100×150mm;
• Max. worktable area: 125×200mm;
• Max. printing area: 85×130mm;
• Max. printing speed: 900pcs/hr;
• Printable colors:2;
• Stroke of table shuttle: 125mm.

• Max. plate size: 100×200 mm;
• Max. worktable area: 125x200mm;
• Max. printing area:85×170mm;
• Max. printing speed: 800pcs/h;
• Printable colour :2;
• Stroke of table shuttle: 125mm.

Two colors pad printer with shuttle//Advantage

• Microcomputer program controlling operating technique ;
• Streamline design ensure dexterous Appearance impressions;
• Coin aluminum structure frame coated Gross-Green color paint;
• Shuttle working table installed to get more precision overprint;
• Independency pressure adjustment of pad press-printing and picking up ink;
• Either testing or running mode to operate ;
• Opened inkwell to store and coating ink , easily adjust the character of pad ink.
• Automatism digital count function;
• Double colors pad printing with drying through blowing hot air:
• Ten grade printing speed setting, auto, semi-auto, testing operation mode setting;
• The function of blade only move front to back for mixing ink ;
• Automatics balance blade to remove the ink completely.
