यूवी और आईआर पेन स्क्रीन प्रिंटिंग मशीन

TLAS-80UV is a new design base on the pen screen printing machine TLAS-80, there is IR curing machine, and this one add the UV curing system that means this pen screen printing machine could use UV ink and there is no need to get anothere UV curing machine. This screen printing machine is one machine, and is has two printing line at left and right side, you could printing the same products ordifferent products, same image or different. One machine make you like have two screen printing machine.

UV & IR pen screen printing machine//character

• Pens in the stationery manufacturing industry who occupy the most important position, and if the circumferential direction of the pen color to achieve the following decorations, silk printer is the most mature and most simple process;
• In diameter, 20 mm large and monochrome printing pen products,
• Such as a ballpoint pen, pencil, marker, whiteboard pen, gel pen, pen, pencil, lipstick, medical syringes, bamboo chopsticks and other small-diameterthe fully automatic monochrome high-speed printing and design of the object surface screen printing machine.
• The high printing speed, print quality and stability.
• Automatic loading and unloading, saving labor intensity, and rocker transport mechanism running smoothly
• Double-set combine design, equivalently two sets screen printing Machine

UV & IR pen screen printing machine//usage

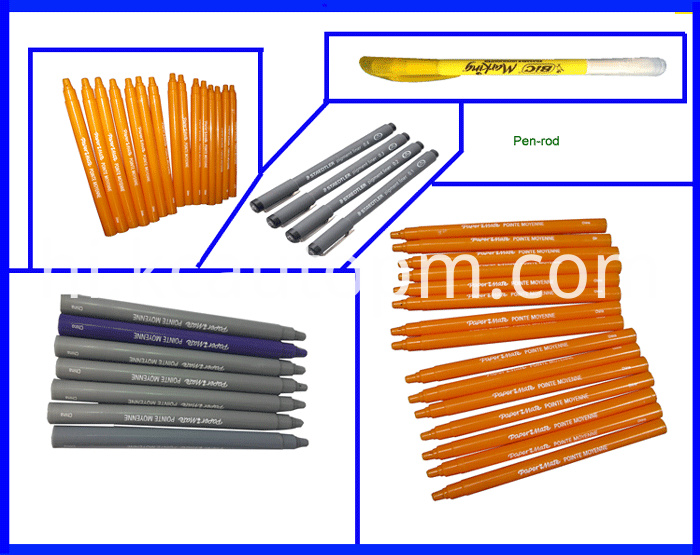

•  Stationery various types of writing instruments in the circumferential direction of monochrome printing;
• Birthday candles, round metal parts, the general accuracy Buddhist screen;
• Some hard without blowing a small diameter container silk screen;
• Some states overall showed a cylindrical chopsticks, drums stick silk screen.
• Some ceramic heating tube screen printing,

UV & IR pen screen printing machine//parameter

• Objects diameter:φ6~φ20 mm
• Objects length:55~160 mm
• Printing stroke: 20~80 mm
• Max printing speed: 7200 pcs/h
• Motor wattage: 4.5kw
• Feeding Motor: 25W;
• Mainly Motor: 375W;
• IR Motor: 60W
• Cool Motor: 5W.
• Net weight: ≈450kg
• Max Frame dimension: 300×200mm.
•  IR wattage: 1KW(up)+1KW(Down)
•  IR Length: 800mm

• Power: 1 phase 220V;
• 5-7Bar Compress air ;
• Liquefied petroleum Gas, Natural gas

• Package dimension: 3110*1270*1550mm;
• Gross weight: 750kg.
• 6.12204

UV & IR pen screen printing machine//advantage

• Cleaning screen , adding ink when stopping will not singe objects in drying closet;
• With vacuum function seated (selection ) for precision orientation.
• High speed printing;
• Printing two kinds of different objects meantime is able.
• Installed surface cleaning device;
• Double blade design for high quality coating ink;
• Eletcron controlling ensure lower noise;
• Automatic feeding and printing;
• Printing stroke and printing speed is adjustable;
• Taiwan frequency conversion production installed;
• IR  drying system online
