हॉट सेलिंग आसान ऑपरेशन टेबलटॉप प्रिसिजन स्क्रीन प्रिंटिंग मशीन

को साझा करें:
इकाई मूल्य: USD 1750 / Set/Sets
Min.Order इकाई मूल्य
1 Set/Sets USD 1750 / Set/Sets
भुगतान प्रकार: L/C,T/T
Terms of Trade: FOB,CIF
Min. आदेश: 1
इकाई मूल्य: USD
बुनियादी जानकारी
मॉडल नं.:ST-3050PV
Type of printing plate: Screen Printer
Applicable industry: Hotels, Machinery Repair Shops, Farms, Home Use, Food Shop, Food &Amp; Beverage Shops
Out-of-warranty service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where to provide local services (in which countries are there overseas service outlets): Thailand, Australia, Argentina, Uae, Sri Lanka, South Africa
Showroom location (in which countries are there sample rooms overseas): Brazil, Indonesia, Mexico, Thailand, Argentina, Uae, Sri Lanka
status: New
place of origin: China
use: Label Printer, Card Printer, Bill Printer, Cloths Printer
degree of automation: Semi-Automatic
Printing color number and surface number: Single Color
warranty period: 1 Year
Core selling point: Easy To Operate, High-Accuracy, Low Noise Level, High Safety Level
Marketing type: Hot Product 2019, Ordinary Product
Mechanical test report: Provided
Video factory inspection: Provided
Core component warranty period: 1 Year
Core components: Motor, Engine
Table Size: 300*500mm
Additional Info
पैकेजिंग: लकड़ी का केस
उत्पादकता: 50 sets/month
ब्रांड: केसी
परिवहन: Ocean
उद्गम-स्थान: , Dongguan
के बारे में समर्थन करना: 50 sets/month
प्रमाण पत्र: CE Certificate
बंदरगाह: Shenzhen,Guangzhou,Hongkong
उत्पाद विवरण

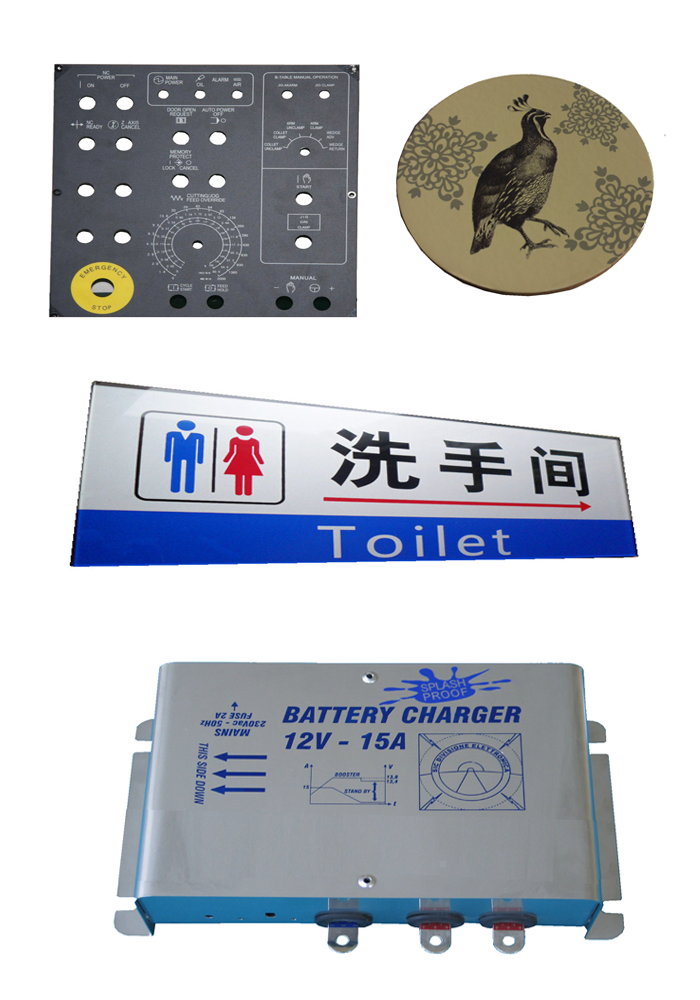

नमूने

डेस्कटॉप फ्लैट स्क्रीन प्रिंटिंग मशीन का कम संस्करण बाजार में छोटे निवेश के साथ स्क्रीन प्रिंटिंग प्रोसेसिंग के क्षेत्र में उपयोगकर्ताओं की जरूरतों को पूरा करने के लिए डिज़ाइन किया गया है। इसमें फ्लैट स्क्रीन प्रिंटिंग मशीन के सभी कार्य हैं, लेकिन कीमत बहुत कम है, और यह लगभग सभी फ्लैट उत्पादों को प्रिंट कर सकता है।
इसका कोई चेसिस नहीं है और इसे मेज पर संचालित किया जा सकता है। यह वायवीय नियंत्रण का उपयोग करता है और एक एयर कंप्रेसर की अतिरिक्त खरीद की आवश्यकता होती है; इसे सक्शन टेबल और टी-स्लॉट टेबल के साथ भी स्थापित किया जा सकता है। सक्शन टेबल का उपयोग कागज और फिल्म को प्रिंट करने के लिए किया जाता है, टी द ग्रूव टेबल तीन-आयामी इंजेक्शन मोल्डिंग उत्पादों को प्रिंट करने के लिए उपयुक्त है।
सटीकता के संदर्भ में, इसका मुद्रण क्षेत्र छोटा है, और इसकी सटीकता अधिकांश उत्पादों के लिए पूरी तरह से उपयुक्त है, और स्क्रीन को ऊपर और नीचे नियंत्रित करने के लिए रैखिक गाइड रेल का उपयोग करने के लिए भी माना जाता है, और यह मूल रूप से रंग पंजीकरण के लिए आवश्यकताओं को पूरा कर सकता है।

258
मशीन विवरण

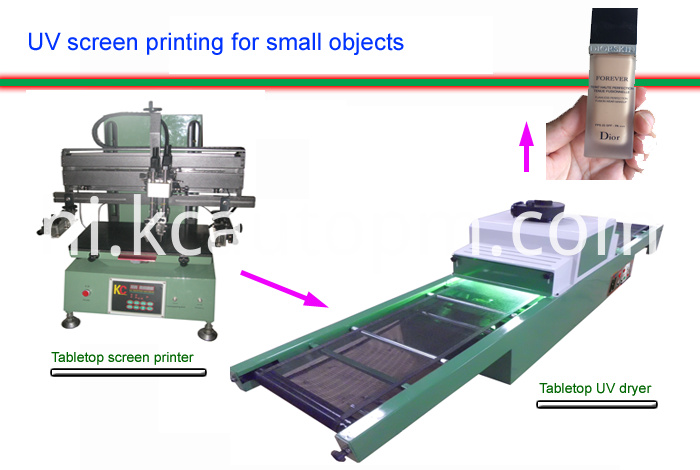

Tabletop Precision Screen printing machine

Cast aluminum alloy beams, pneumatic lift mode, pneumatic printing control, printing smooth, high precision, more convenient, fast;
Scraper mechanism using high-precision rodless cylinder control, smooth operation, scraping ink back to ink are used brand-name cylinder mechanism, easy to adjust.

Tabletop Precision Screen printing machine//Feature

  • Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
  • Screen form up and down movement of contact with the table, suitable for hand-placed and remove the product;
  • Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
  • Screen form Clamping device free to adjust to fit different sizes of screen;
  • Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
  • Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
  • Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
  • Microcomputer program control operations;
  • Rubber squeegee and screen frame controller by High precision liner guide rial.
  • 4-Digit auto counter; to facilitate the measurement of production efficiency.

Tabletop Precision Screen printing machine//Parameters

  • Max printing thickness: 150 mm;
  • Air consumption: 60Litre/Min;
  • Dimension of working table: 300×500mm;
  • Max printing areas: 290×490mm;
  • Max printing speed: 1000Pcs/H;
  • Max frame dimension: 500×750mm;
  • Compress air: 5-7 bar;
  • Stroke of cylinder up and down:125mm;
  • Stroke of Squeegee: 500mm;
  • Table Precision: 0.05mm;
  • Rang adjustment of table: 10mm

Tabletop Precision Screen printing machine//Advantage

  • Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
  • Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
  • Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
  • Screen forme Clamping device free to adjust to fit different sizes of screen;
  • Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
  • Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
  • Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
  • Microcomputer program control operations;
  • 4-Digit auto counter; to facilitate the measurement of production efficiency
